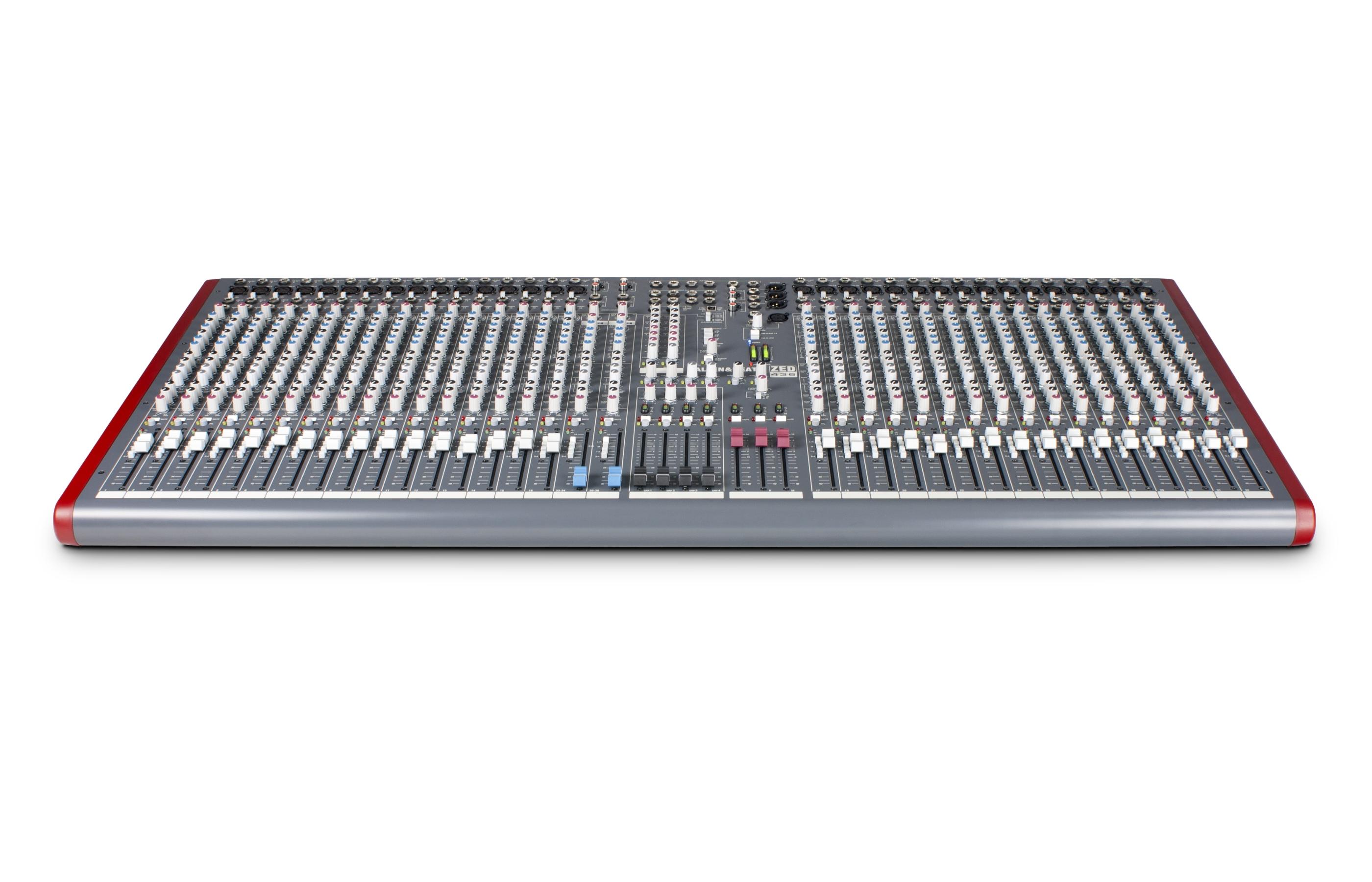

Allen and Heath ZED-436 32 Channel Analog Mixer with USB

Based on the proven pre-amps from the hugely successful PA series, ZED-436 has DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage.

Share Now

Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email
Description

ZED-436 is excellent for bands, houses of worship, theatres or AV applications. It has a truly professional feature set, which will fit any sound reinforcement application and professional PA hire stock.ZED-436 has Configurable USB audio in-out makes it easy to capture stereo recordings, 32 mic or line inputs plus 2 dual stereo inputs, 4-band EQ with MusiQ, 4 sub-groups, 6 auxiliary sends and a 7 – 2 matrix.

Based on the proven pre-amps from the hugely successful PA series, ZED-436 has DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge – 69dB of range to be exact – and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input and also matching to a higher input impedance.

Specifications:

– 32 mono channels
– 2 dual stereo inputs with 4-band EQ
– Neutrik mic xLR
– Neutrik 35.56mm jacks
– Channel insert
– Super wide gain ‘DuoPre’ mic line input
– 4-band EQ with 2 swept mids and in-out switch
– Illuminated mute
– Sound image pan
– Ill uminated PFL & peak warning indicator
– ALPS 100mm faders
– 6 auxiliary sends (2 pre, 2 post, 2 pre-post)
– 4 sub groups fed from each channel
– All inputs with level control
– 12 bar meters
– L, R and M main mix outputs
– 2 matrix sections available; can send output to USB
– Individual channel 48V phantom power
– Direct output on every mono channel
– Peak and signal indication on every channel
– Configurable USB stereo audio in-out
– Master level controls on all outputs
– Easy to use layout-all connections and controls on top surface
