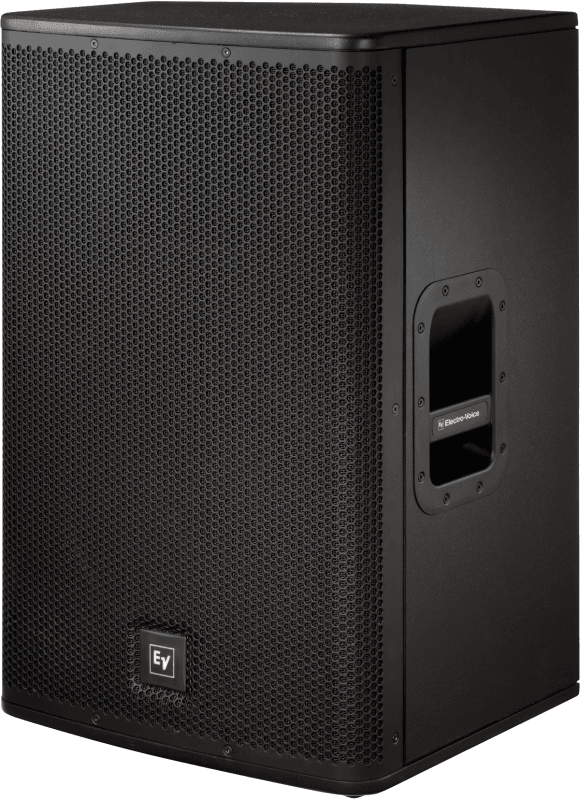

EV ELX115 1000w 15″ Passive Speaker

A powerful step up from the ELX112, the ELX115 features a 15” woofer that delivers extended low-frequency response for bigger sound in larger rooms.

Repair & Service

Repair & Service on most musical, studio, & audio gear!

Share Now

Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email



OVERVIEW

Complement your powered mixer or amplifier with this quality, affordable loudspeaker.

Part of Electrovoice Live X series, the ELX115 can be used with a wide range of amplifiers or powered mixers thanks to its exceptionally efficient design and power handling capability. Designed with the latest Electro-Voice-engineered 15″ woofer and 1.5″ titanium compression driver, the ELX115 provides excellent audio quality with 400W power handling (1600W peak), exceptional SPL output, and a 75Hz-18kHz frequency response. The ELX115 is constructed of 9-ply, 15mm plywood, and is internally braced, making it sturdy yet completely portable. It has built-in side handles for transport, and pole mount for stacking it on top of a acoustically matched Live X series sub.

FEATURES

  • Speaker configuration
  • Active/passive: Passive
  • Type: 2-Way full range
  • LF driver: 15″
  • MF driver: Not applicable
  • HF driver: 1.5″
  • Power capacity
  • 8 Ohms program/peak: 400W/1600W
  • 4 Ohms program/peak:
  • Audio
  • Frequency response: 50Hz – 20kHz
  • Coverage pattern: 90° x 50°
  • Max SPL: 134 dB
  • Inputs
  • XLR: Not applicable
  • TRS: Not applicable
  • TS: Not applicable
  • RCA: Not applicable
  • SPEAKON: 1
  • Output/thru
  • XLR: Not applicable
  • TRS: Not applicable
  • TS: Not applicable
  • RCA: Not applicable
  • SPEAKON: 1
  • Enclosure
  • Cabinet material: 15mm ply
  • Width: 17″
  • Height: 27.9″
  • Depth: 15″
  • Weight: 51 lb.
  • Get more sound for less money and weight. Ordering one or a pair of these ELX115’s today!

SPECIFICATIONS

  • Freq. Response (-3dB): 75Hz-18kHz
  • Freq. Range (-10dB): 50Hz-20kHz
  • Axial Sensitivity: 95dB
  • Max. Measured SPL: 134 dB
  • Recommended HP Freq.: 40Hz
  • Coverage (Horiz. x Vert.): 90 x 50
  • Power Handling: 400W Continuous, 1600W Peak
  • LF Transducer(s): (1) EVS-15K, 381mm (15″) Woofer
  • HF Transducer: DH-1K, 39mm (1.5″) Titanium Diaphragm Compression Driver
  • Crossover Frequency: 1.7kHz
  • Nominal Impedance: 8Î
  • Minimum Impedance: 7.4Î
  • Connectors: Dual NL4
  • Enclosure Material: 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
  • Grille: 18GA Steel with Black Powdercoat
  • Dimensions (WxHxD): 432mm x 708mm x 382mm (17.02″ x 27.89″ x 15.05″)
  • Net Weight: 23.0kg (51 lb.)
